Ford Meter Box

Uni-Flange Ductile Iron Adapter Flanges, UFAxxx Styles

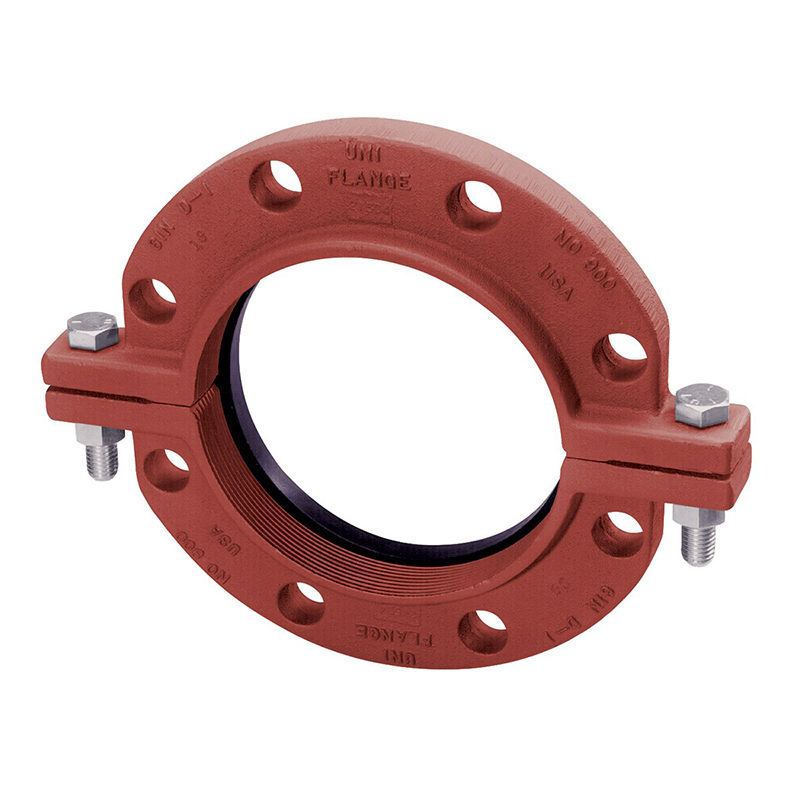

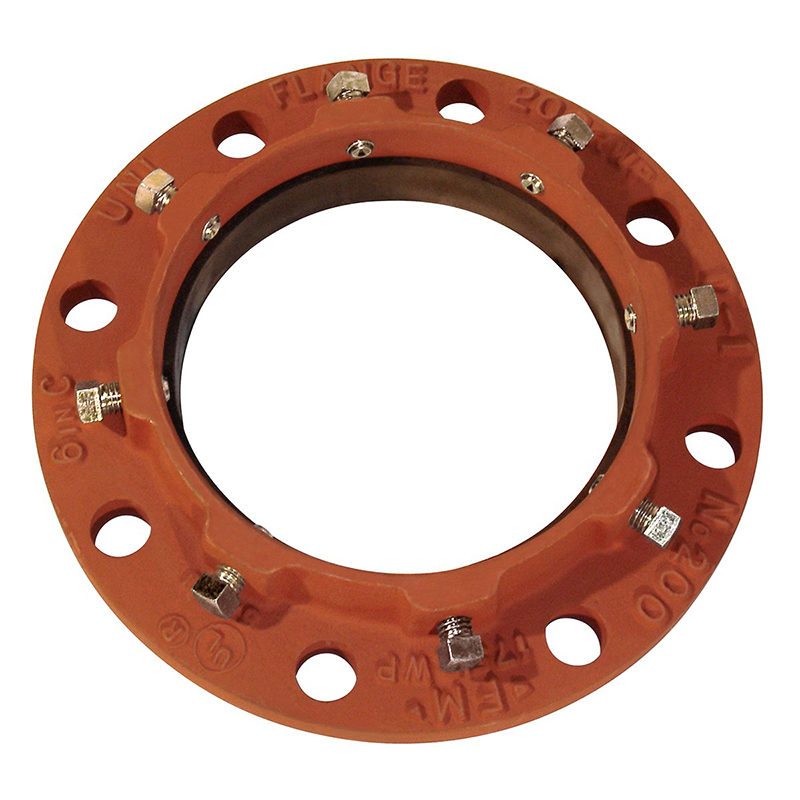

The Uni-Flange Ductile Iron Adapter Flange allows a flanged connection to any plain-end piece of pipe with minimal headache. This flange comes in two designs: for steel and ductile iron pipe, the flange is made of ductile iron, giving it exceptional strength and impact resistance; the gasket is SBR (Buna-S); and the restraint is provided by a set screw locking system similar to that used in mechanical joint restraints. The design for PVC pipe features the same ductile iron flange with an EPDM gasket and a pair of clamping bolts and inner serrations providing positive end restraint.

The Ford UFAxxx Uni-Flange Ductile Iron Adapter Flange is available in sizes from 2″ – 48″ for steel and ductile iron pipe (UFA200, UFA-400, & UFA420), and in sizes from 4″ – 12″ for PVC pipe (UFA900).

Request A Quote
  • Product Sheet: Uni-Flange Adapter Flange for Ductile Iron Pipe UFA200-C-x, Ford Meter Box
  • Product Sheet: Uni-Flange Adapter Flange for Ductile Iron Pipe UFA400-C-x, Ford Meter Box
  • Product Sheet: Uni-Flange Adapter Flange for Ductile Iron Pipe UFA420-C-x, Ford Meter Box
  • Product Sheet: Uni-Flange Adapter Flange for Ductile Iron Pipe OD PVC Pipe UFA900-C-x, Ford Meter Box
  • Product Sheet: Uni-Flange Adapter Flange for Steel Pipe UFA200-S-x, Ford Meter Box
  • Product Sheet: Uni-Flange Adapter Flange for Steel Pipe UFA400-S-x, Ford Meter Box
  • Product Sheet: Uni-Flange Adapter Flange for Steel Pipe UFA420-S-x, Ford Meter Box
  • Product Sheet: Uni-Flange Adapter Flange for Steel Pipe OD PVC Pipe UFA900-S-x, Ford Meter Box
  • Other Product Literature: Ford Catalog, Section U – Pipe Restraints and Adapter Flanges, Ford Meter Box
  • Other Product Literature: Warranty, Ford Meter Box
