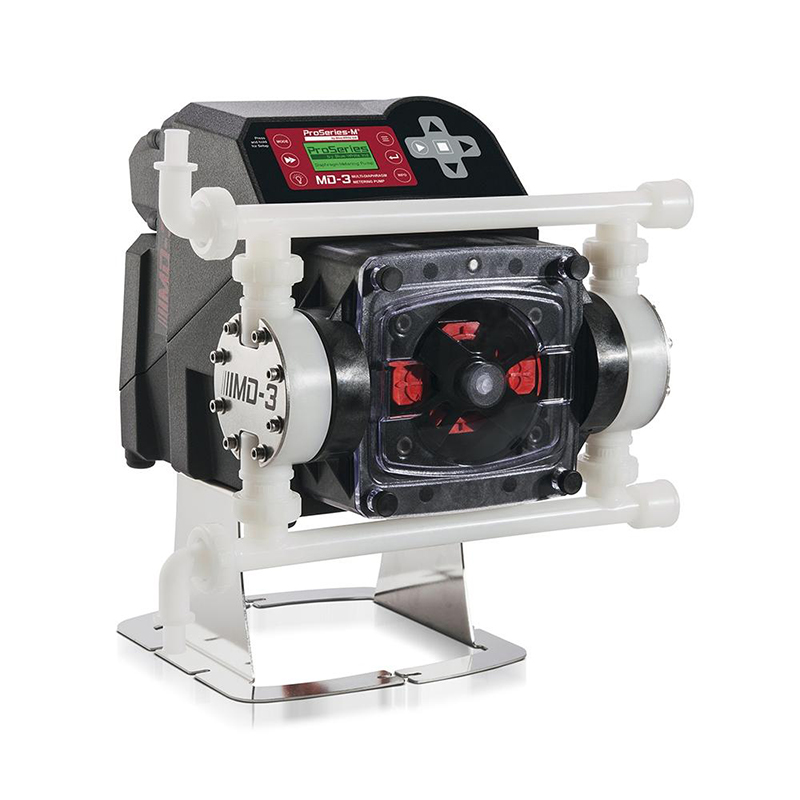

A powerhouse chemical feed pump

With dual diaphragm hyperlink drive technology, the MD3 will not lose prime – even when pumping chemicals that off-gas, like peracetic acid and sodium hypochlorite.

Smooth chemical feed

The MD3 mimics the best traits of peristaltic pumps – smooth, gentle, continuous flow – with the first diaphragm is in the suction phase, with the second in the discharge phase.

Unlike a peristaltic pump, the MD3 does not rely on a tube assembly that will wear out and need replacement. The patented DiaFlex diaphragms are designed to last for the entire life of the pump.

We are proud to partner with Blue-White to provide our customers with quality solutions for a wide variety of water and wastewater treatment applications. I’m confident that together, we’ll be able to help our customers in their mission of providing safe, clean, high-quality water to every home and business in their service area.
Marty Mazzella
President & Owner, Ti-SALES

Superior Design

The MD3 outclasses all of its competition, with features including:

  • 5 Year Warranty
  • 2,000:1 turndown ratio
  • NEMA 4X (IP66) wash-down, chemically resistant powder coated enclosure
  • Large PVDF, Ceramic, double ball check valves without metal springs

Safety Features

  • Diaphragm Failure Detection (DFD) senses diaphragm rupture, preventing hazardous chemical spills
  • Security programmable 4-digit password to prevent tampering

Communication & Interface

  • Operator-friendly digital touch pad with menu driven software
  • VGA Graphic multi-color backlit LCD displays remote/local control status, motor speed, output rate, input signal values, service and alarm status
  • Inputs include: 4-20mA, 0-10Vdc, and Pulse inputs for remote external speed control and 0-30 VDC / contact closure remote start/stop
  • Outputs include: Scalable 4-20mA or pulse, one 250V/6A relay and three 115V/1A contact closures assignable to monitor up to 17 different pump functions including TFD, FVS, remote/local control setting, motor on, fault, current operating mode, and others
